Countersunk Neodymium Pot Magnets

Name: Countersunk Neodymium Pot Magnets
Brand: Ningbo Beilun Meank Magnetics Co.,Ltd.

The magnetic assembly that a disc shape magnet with a countersunk hole housed with a flat steel cup is known as flat countersunk cup magnets or countersunk pot magnets, which are used as holding magnets and mounting magnets.

Rare earth neodymium magnets have high magnetic energy and are always used to make mounting/holding magnets for heavy-duty applications. Thanks to the steel cups, as a new type of countersank magnets with steel cups housed outside, the finished magnetic system has several times the magnetic holding force of the naked neodymium magnets.

The working surfaces of neodymium cup/pot magnets with countersunk holes are north pole, are compact and practical for integrating into your projects or ideas. The central countersunk holes of the neodymium cup (pot) magnets are designed for screw, with the counterbore/countersunk mounting holes, our china neodymium pot magnet can be screwed on anywhere for holding applications.

Summary Of Countersunk Neodymium Shallow Pot Magnets:

Component Material: neodymium ring magnets + A3 steel cup + ABS plastic ring or epoxy glue

Available Surface Treatment: Nickel, Zinc, spray colorful plastic

Standard Size: diameter-16mm, 20mm, 25mm, 32mm,36mm,42mm,48mm,60mm,75mm

Magnetic Grade: N35, N38, N40, N42, N45,N48,N50,N52

Working Temp.: -40 to 80℃（for standard ones), the pot magnets for higher working temperature can be customized

Specifications Of Neodymium Disc Cup Magnets With Countersunk Hole

Countersunk Neodymium Ring Magnets.jpg

Model（A）	Dimension(mm)				Attraction(kg)	Dead Weight(g)
Model（A）	D	D1	D2	H	Attraction(kg)	Dead Weight(g)
A16	16	3.5	6.5	5	5	7
A20	20	4.5	8.6	7	6	13
A25	25	5.5	10.5	8	14	23
A32	32	5.5	10.5	8	25	39
A36	36	6.5	12	9	29	47
A42	42	6.5	12	9	37	76
A48	48	8.5	16	11.5	68	128
A60	60	8.5	16	15	112	273
A75	75	10.5	19	18	162	528

Note: common standard neodymium countersunk cup magnets are with a grade of N35 and Nickel coating unless customers have another requirement.

Common Uses and applications Of Neodymium Disc Countersunk Magnets With Steel Cup

1. neodymium disc countersunk magnets with cups are used as a round magnetic base screwed on non-metal objects.

2. Big neodymium countersunk pot magnets can be fixed with eye bolts and used as fishing magnets

3. Small rare earth countersunk pot magnets can be screwed onto the door and used as magnetic door stops.

4. Tiny neodymium countersunk pot magnets can be used as office magnets for holding papers.

Advantages Of Neodymium Countersunk Pot Magnets:

1. Neodymium countersunk cup magnets can be used for heavy-duty applications.

2. Installation of neodymium countersunk pot magnets is simple.

3. The applications of neodymium countersunk ring magnets are mulriple.

4. Various sizes can be made for countersunk rare earth cup magnets.

Contact Us For Customizing Neodymium Countersunk Cup Magnets:

Mean magnetics supply high-performance rare earth neodymium countersunk magnets with steel cups.

If no standard neodymium cup/pot magnets with countersunk from the table can meet your needs, please contact us for customizing..

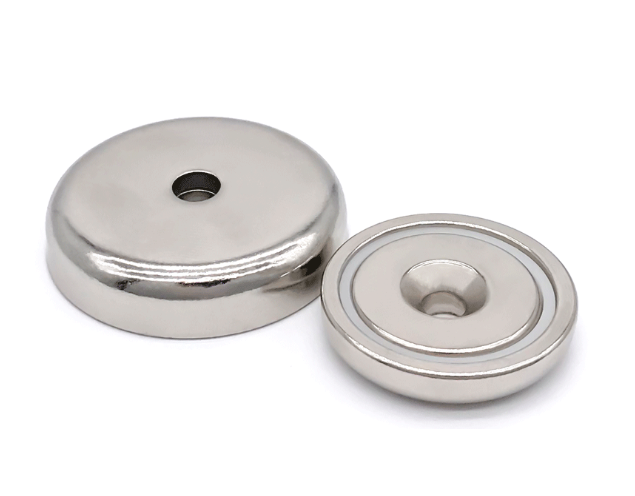

Two Different Appearances of Neodymium Cup Magnets Edges

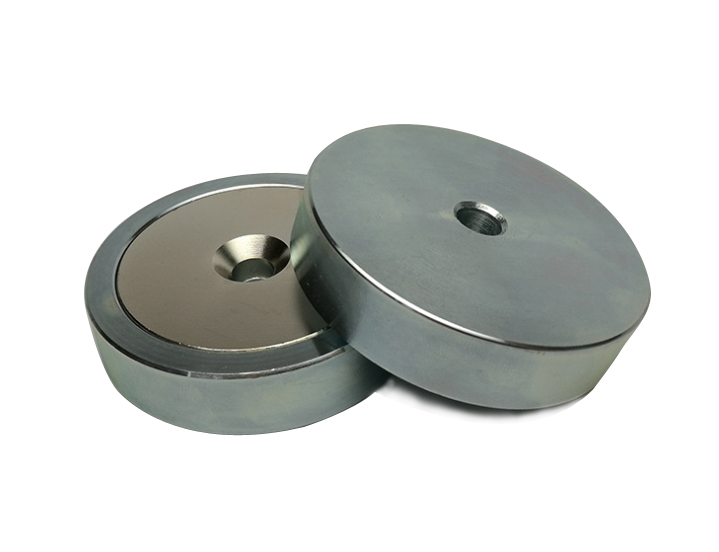

The steel cups are machined with punching machine

The steel cups are machined with turning machine
