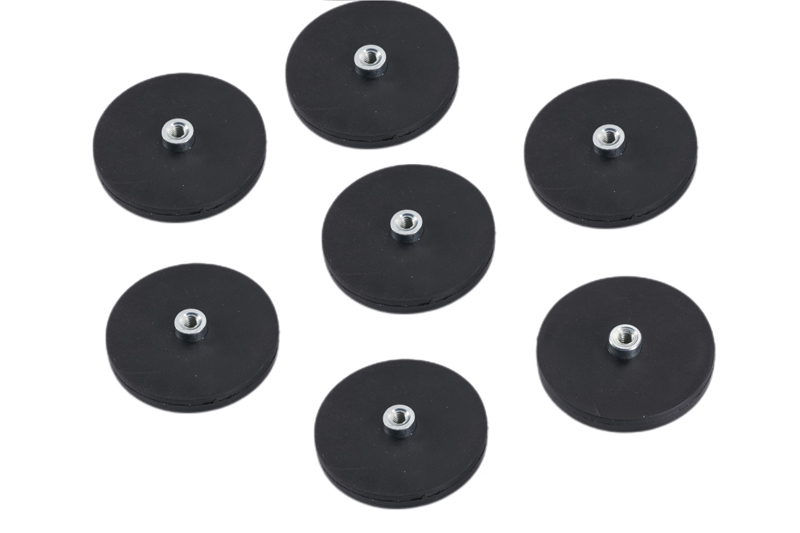

The rubber-coated mounting magnets with internal(female) threaded stem/bushing(shorted as internal thread rubber-coated mounting magnets) offer magnetic bases for waterproof magnetic ceiling hooks and rustproof holding magnets for outdoor use. All the internal thread rubber-coated mounting magnets are made with N35 neodymium material, which produces the strongest strength. For different applications, you can screw different threaded hooks and lifting rings into the internal thread post.
Items Code | D(mm) | H(mm) | L(mm) | d(mm) | M | Force（kg） | Weight(g) |
RCINS-D12 | 12 | 6 | 10.5 | 8 | M4 | 1 | 6 |
RCINS-D22 | 22 | 6 | 10.5 | 8 | M4/M6 | 6.5 | 13 |
RCINS-D31 | 31 | 6 | 10.5 | 8 | M4/M6 | 7.5 | 22 |
RCINS-D43 | 43 | 6 | 10.5 | 9 | M4/M6 | 8.5 | 33 |
RCINS-D66 | 66 | 8 | 12 | 12 | M5/M6/M8 | 18 | 105 |
RCINS-D88 | 88 | 8 | 13.5 | 15 | M6/M8/10 | 42 | 192 |
Internal thread rubber-coated mounting magnets are used for various ceiling lamp mounting and holding.
Rubber-coated mounting magnets with internally threaded bushing are used for fixing and mounting automobile advertisements, lightboxes, and speakers.
Rubber-coated mounting magnets with female threaded stems are used for the installation and fixation of industrial tooling and factory equipment.
1, Multipole magnetic circuit design to strengthen the magnetic force of the round magnetic bases
2, Waterproof and corrosion-resistant outside coat, which extended the service life of the rubber-coated neodymium mounting magnets.
3, Variable size for the round base and threaded hole, which give different holding forces to the rubber-coated mounting magnets.
4, Different hooks and ring fasteners can be used, which make the rubber-coated magnetic base suite for different applications of holding, clamping, and mounting.
Please fill the form to let us know your need. Our sales will get in touch with you ASAP.
